IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A

Name: IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A
Brand: JINPAT
Price: 1 USD

Buy cheap IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A product

Brand Name : JINPAT

Model Number : LPT050-1210

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 100K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Circuits : 12*10A

Via diameter : 50mm

Number of ways : 12

Contact Now

We JINPAT cable reel slip ring LPT series suit for the application of crane. Like the slip rings LPT025/LPT038/LPT050 and so on.

LPT050-1210 hallow shalft slip ring features 12 circuits and 10 A per circuit. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

Specification
Circuits	1-24 circuits
Operating Speed	0-300rpm
Working Temperature	-20℃~ +60℃
Working Humidity	60%RH or higher
Electrical:
Voltage Rating	240VAC/DC or higher
Current Rating	2A/5A/10A/15A per circuit
Dielectric Strength	≥1000V@50Hz between each circuit
Insulation Resistance	50MΩ@ 500VDC
Electrical Noise	30mΩ Min
Mechanical:
Contact Material	Precious metal
Lead Wire Length	Standard 300mm (11.811inch)
Housing Material	Aluminum alloy
Torque	≤9.25 g·m (for reference )
Protection	IP44 or higher

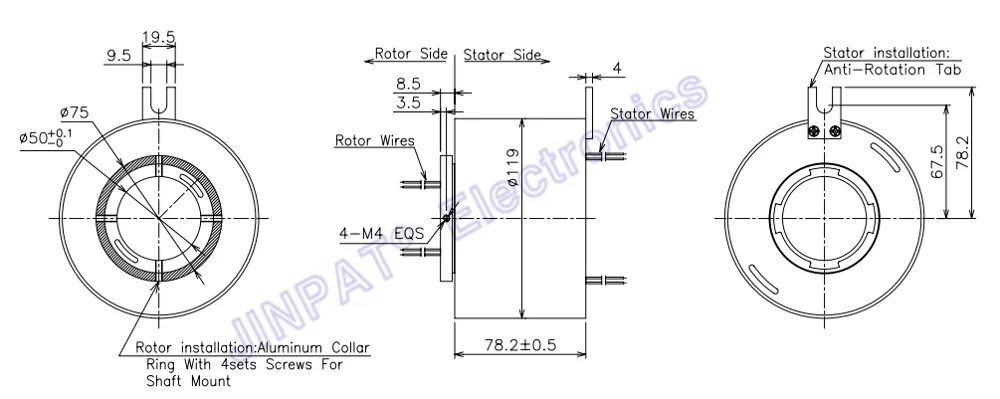

Product outline drawing

Advantages
